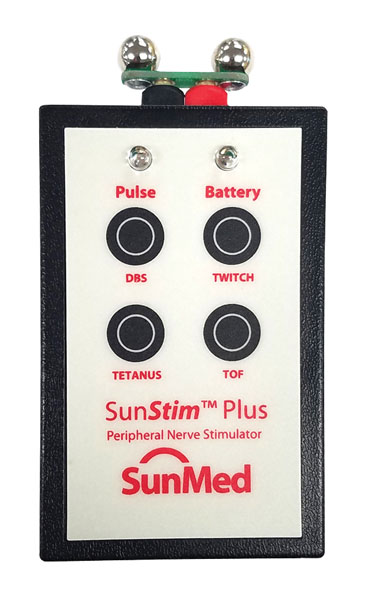

SunStim™ Plus Peripheral Nerve Stimulator

The SunStim™ Plus Peripheral Nerve Stimulator for anesthesia features 50 and 100Hz tetanus, automatic train-of-four, and double burst stimulation. SunStim™ Plus Peripheral Nerve Stimulators allow manual detection of small amounts of residual neuromuscular blockade, making it easier to "feel" fade in muscle responses.

• Complete muscle relaxant that fits in the palm of your hand
• Delivers sufficient output to ensure supramaximal stimulation; output current is fully adjustable from 0-70mA
• Features 50 and 100Hz tetanus, automatic train-of-four, and double burst stimulation
• Includes instruction manual, battery, ball electrodes and 6′ leads with clips
• Functions:
  • Double Burst – 2 60-ms bursts of 50 Hz separated by .75 s
  • Twitch – 1 s (1 pulse/s)
  • Tetanus – 50 Hz (50 pulses/s); or 100 Hz (100 pulses/s)
  • Train-of-Four – Single (4 pulses/2 s)
  • Output Current – Adjustable from 0-70 mA
  • Stimulus Pulse – Square Wave Monophasic pulses
• Power Source – One 9-volt alkaline battery
• Size – 3.75″H x 2.25″W x 1″D
• Weight – 5.6 ounces with battery (included)
• SunStimPlus IFU
