Air-Q®3 Intubating Laryngeal Airway
LATEX FREE
STERILE
DISPOSABLE
The advanced, silicone Air-Q®3 Intubating Laryngeal Airway (ILA) helps deliver safety and confidence in upper airway management, no matte what airway challenges you face. The unique ET tube ramp and epiglottis elevator air in fast, easy, and safe intubations.
- Perfect placement with better visual clarity
- Unique ET tube ramp and epiglottis elevator aid in fast, easy, and safe intubations
- Designed to optimize airway placement and seal
- Anatomically correct placement of the masked airway
- Lifts the epiglottis to maximize access
- Guide ramp assists with ET tube insertion and placement

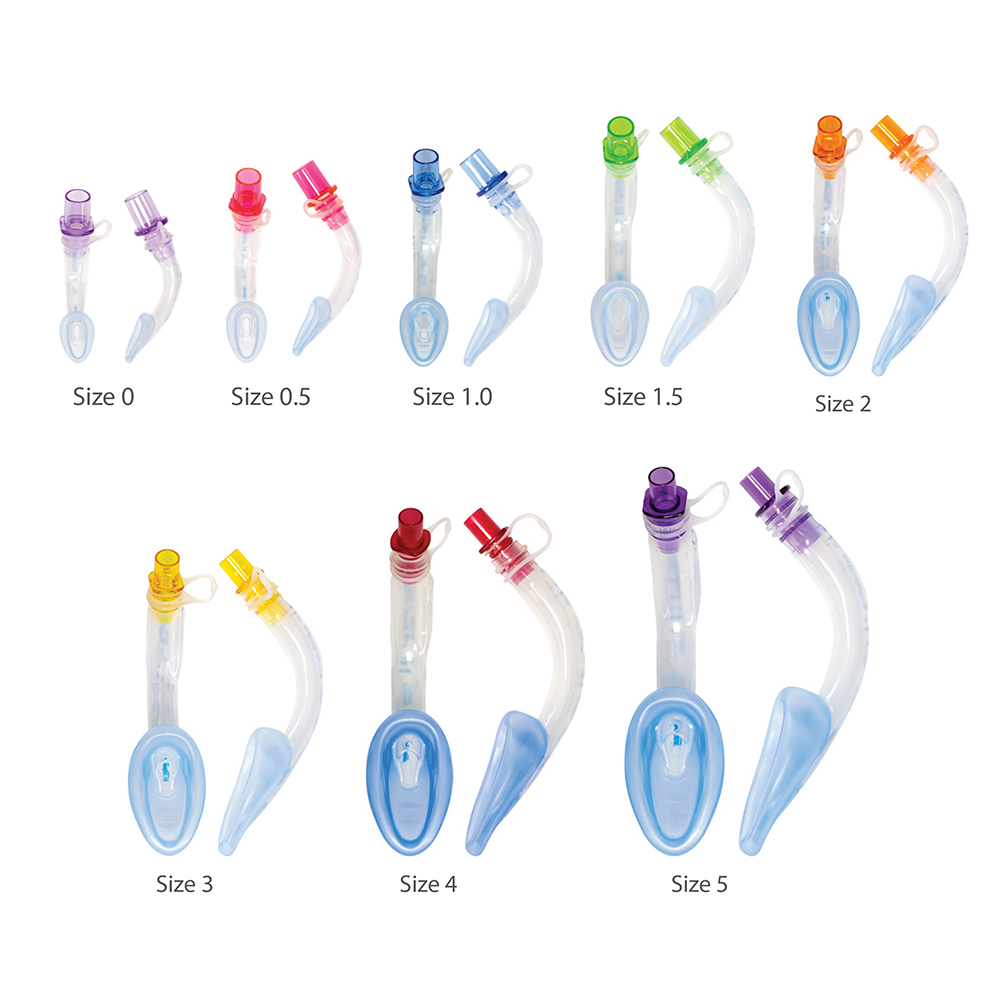

- Color-coded connector for easy size identification
- Anatomically curved, medical grade silicone airway tube with integrated bite block
- Built up mask heel for improved seal
- BRO-10019_Air-Q3_Brochure_Rev1
- LIT-10078_Air-Q3_Literature_Sheet_Rev1
Price range: $95.95 through $121.95
| SKU | Description | Body Mass Range | Size | Max ETT Size | Air-Q3 Tube Length | Inflation Volume | QTY | Price | |
|---|---|---|---|---|---|---|---|---|---|
| 30005 | Air-Q3 Supraglottic Laryngeal Airway | <2 kg | 0 | 3.0 mm | 6.0 cm | 0-0.5 mL | 10 | $121.95 | |
| 30055 | Air-Q3 Supraglottic Laryngeal Airway | 2-4 kg | 0.5 | 4.0 mm | 7.0 cm | 0-0.5 mL | 10 | $121.95 | |
| 30505 | Air-Q3 Supraglottic Laryngeal Airway | >80 kg | 5.0 | 9.0 mm | 20.0 cm | 4.0-5.0 mL | 10 | $95.95 | |
| 30305 | Air-Q3 Supraglottic Laryngeal Airway | 30-60 kg | 3.0 | 7.0 mm | 16.0 cm | 2.0-3.0 mL | 10 | $95.95 | |
| 30405 | Air-Q3 Supraglottic Laryngeal Airway | 60-80 kg | 4.0 | 8.0 mm | 18.0 cm | 3.0-4.0 mL | 10 | $95.95 | |
| 30105 | Air-Q3 Supraglottic Laryngeal Airway | 4-7 kg | 1.0 | 4.5 mm | 9.0 cm | 0.5-1.0 mL | 10 | $95.95 | |
| 30155 | Air-Q3 Supraglottic Laryngeal Airway | 7-17 kg | 1.5 | 5.0 mm | 11.0 cm | 1.0 mL | 10 | $95.95 | |
| 30205 | Air-Q3 Supraglottic Laryngeal Airway | 17-30 kg | 2.0 | 5.5 mm | 14.0 cm | 1.0-2.0 mL | 10 | $95.95 |
